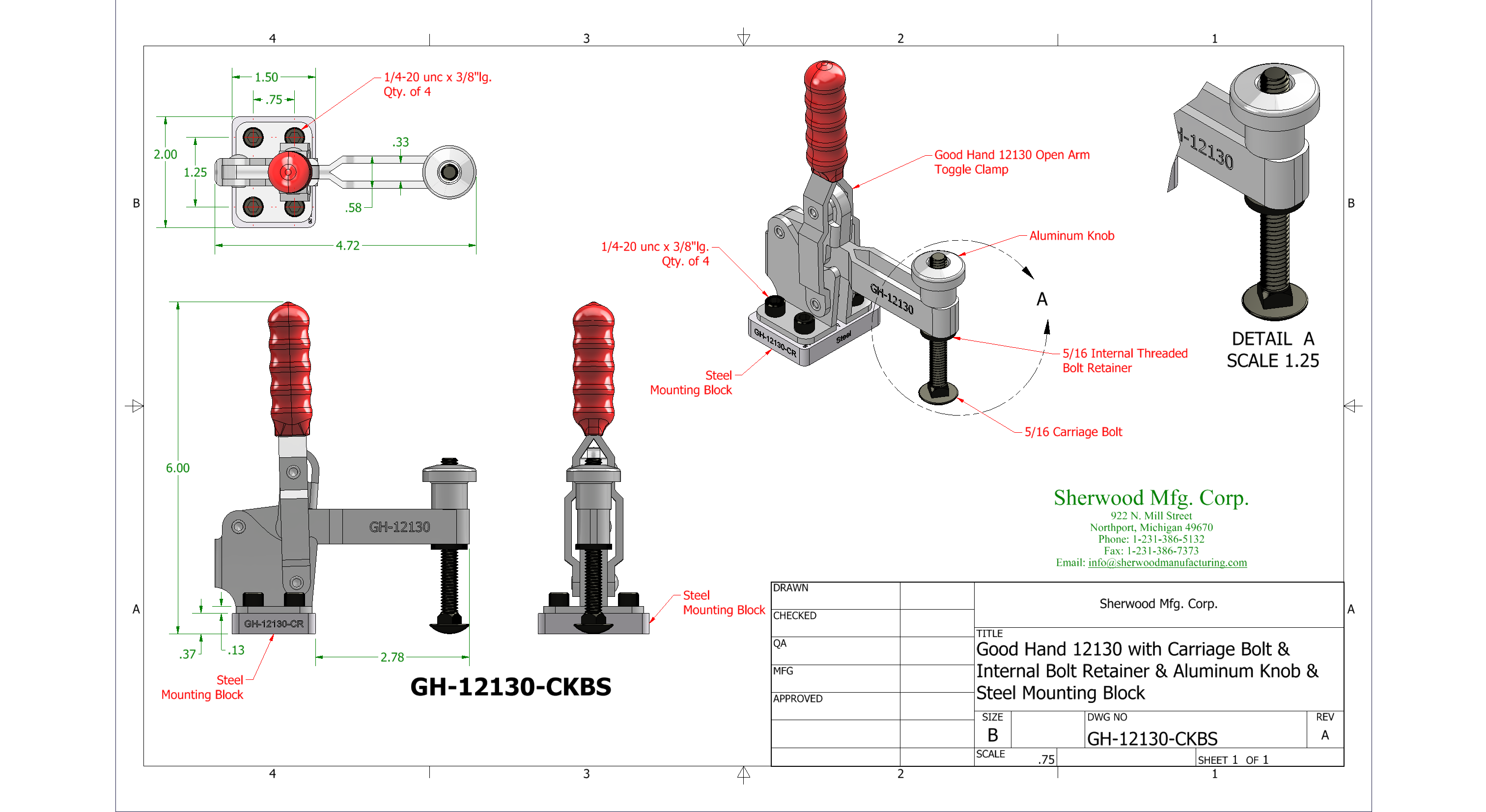

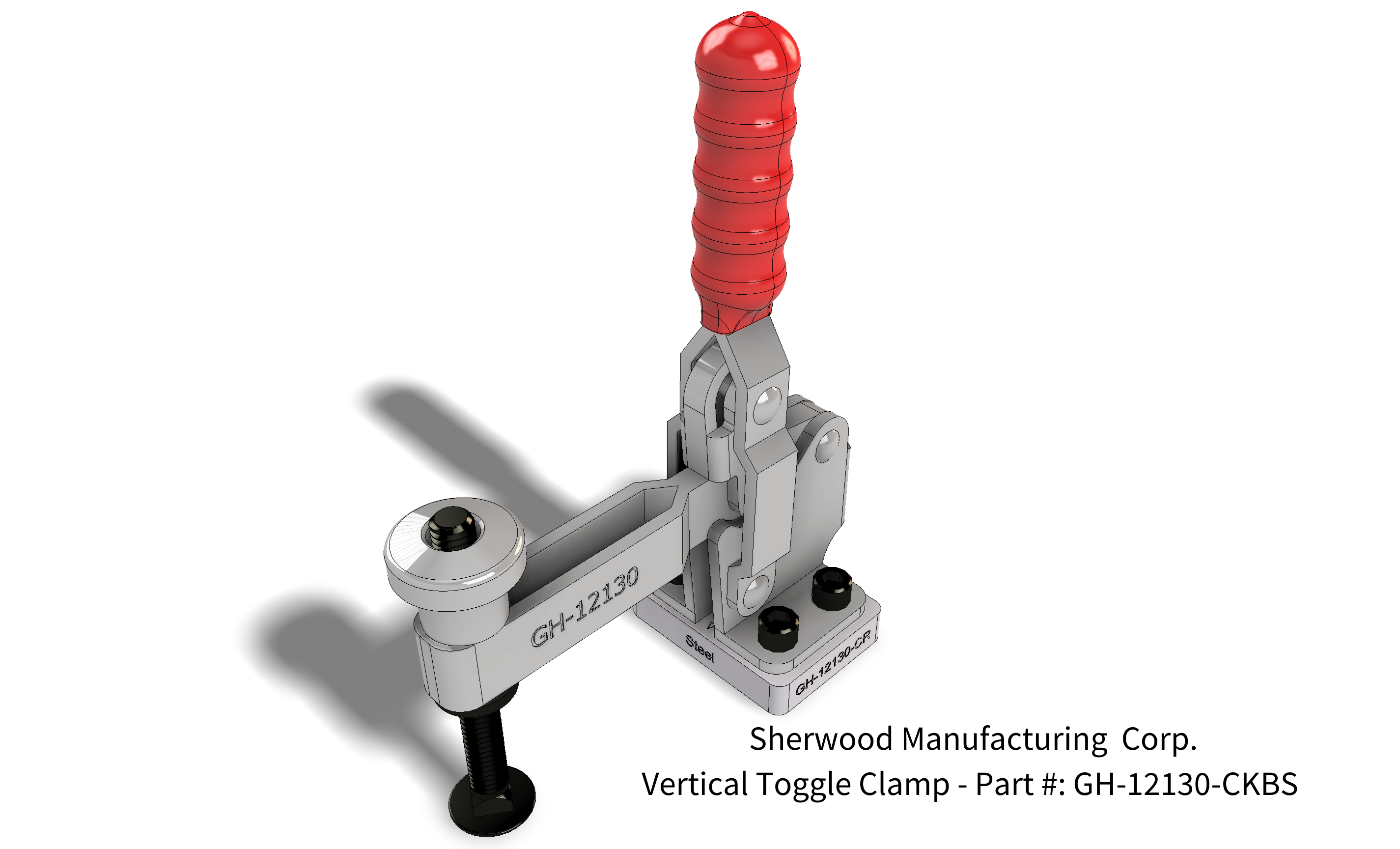

GH-12130-CKBS

Part #: GH-12130-CKBS

Designed for metal working.

Includes:

• Vertical Clamp (GH-12130)
• Mounting Block (GH-12130-CR (Steel)
• Internal Threaded Bolt Retainer
• Carriage Bolt
• Aluminum Knob

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Weld the mounting block in place
• And you are good to go!

*If you are done with the job, you can take the clamps off and reuse them on another fixture.  All you would need is another Mounting Block GH-12130-CR (Steel) or (Aluminum)

Specifications:

• 500 lbs. Holding Capacity
• Vertical Handle.
• Weight: .059 lbs.
• Bar opens: 100  deg., Handle 60 deg.
• 5/16” Open Arm or U-Bar , Style of Toggle Clamp.
• Flanged Base for easy Bolt on application.
