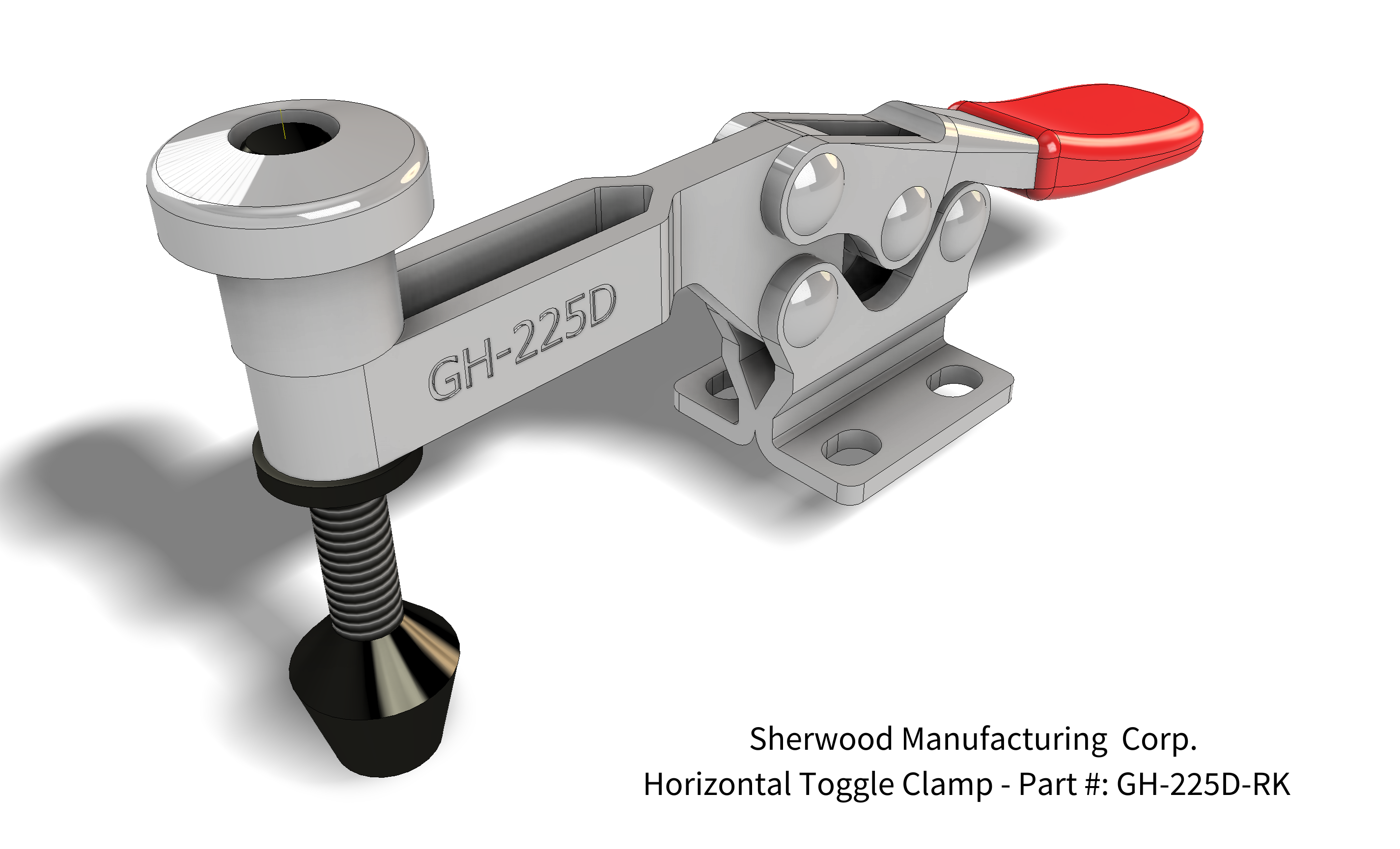

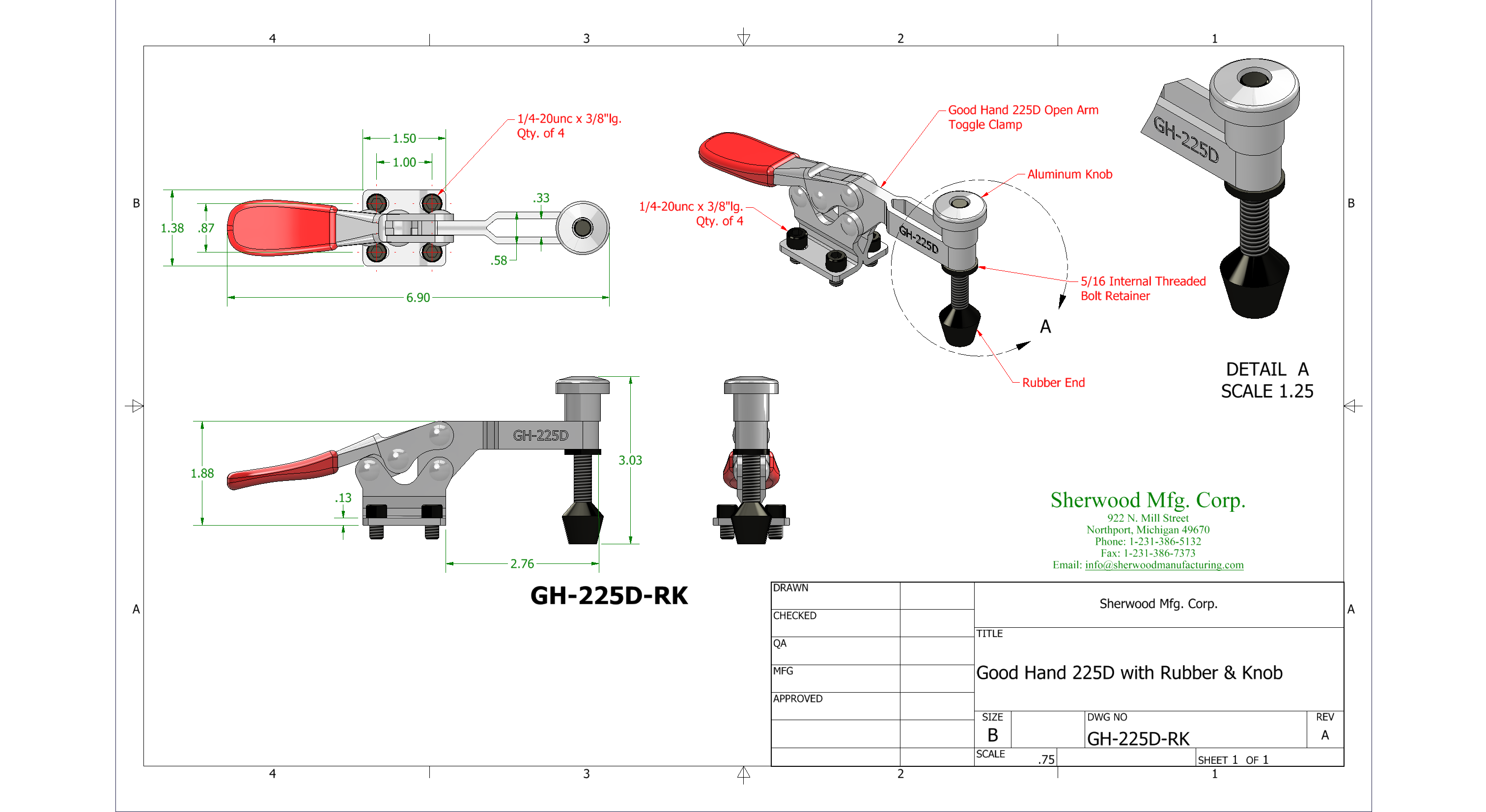

GH-225D-RK

Part #: GH-225D-RK

*If you plan to use this clamp for metalworking see our GH-225D-RKBS for a clamp and mounting block assembly allowing you to use this clamp on multiple fixtures thanks to our patented mounting block.

Wrench Free. Designed for metalworking.

Includes:

• Horizontal Clamp (GH- 225D)
• Internal Threaded Bolt Retainer
• Rubber Spindle
• Aluminum Knob

Making an “Out Of The Box”, “Plug and Play”, “Ready To Go” Clamp System that you just:

• Pull the clamp from the bag
• Put it in the position you want
• Bolt in position
• And you are good to go!

Specifications:

• 500 lbs. Holding Capacity
• Horizontal  Handle.
• Weight: .059 lbs.
• Bar opens: 90  deg., Handle 65 deg.
• 5/16” Open Arm or U-Bar , Style of Toggle Clamp.
• Flanged Base for easy Bolt on application.
